● 16-bit resolution A/D
● Up to 500kHz sampling rate
● 16 single-ended or 8 differential analog inputs
● 10 input ranges, unipolar or bipolar
● A/D starts from software, timer and external trigger
● Single channel or scan A/D modes
● On-board calibration reduces A/D converter offset and gain errors
● Noise reduction with channel oversampling
● Over-voltage protection of -40V to +55V
● 1024 sample data FIFO for A/D
● Two 12-bit D/A outputs and 16 high-current digital I/O lines
● DAC error calibration
● 16-bit programmable counter/timer
● FACTORY OPTIONS:
- FIFO up to 4K sample
- Programmable amplifier with gains of 1, 10, 100, and 1000
- Onboard DC/DC converter enables operation from a single +5V power supply
- Extended temperature operation (-40°C to + 85°C)
- RoHS Available. Please contact us for ordering information
● Equipment monitoring
● Environmental measurements
● Embedded OEM
● Education/Laboratory
● Portable
● Industrial Automation
● Precision Measurement
● Analysis, Monitoring, and Control
Available accessories include a wide variety of cables and screw terminal boards for quick and easy connectivity.

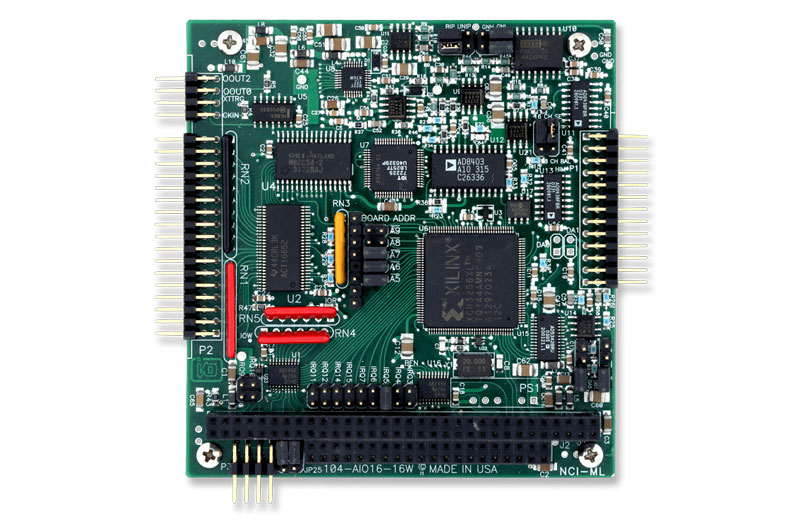

The 104-AIO16A is supported for use in most operating systems and includes a free DOS, Linux and Windows XP -> 10, both 32 & 64 bit compatible software package. This contains sample programs and source code in “C” and Pascal for DOS, and Visual Basic, Delphi, and Visual C++ for Windows. Also included is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from any user level via an open source kernel driver.
