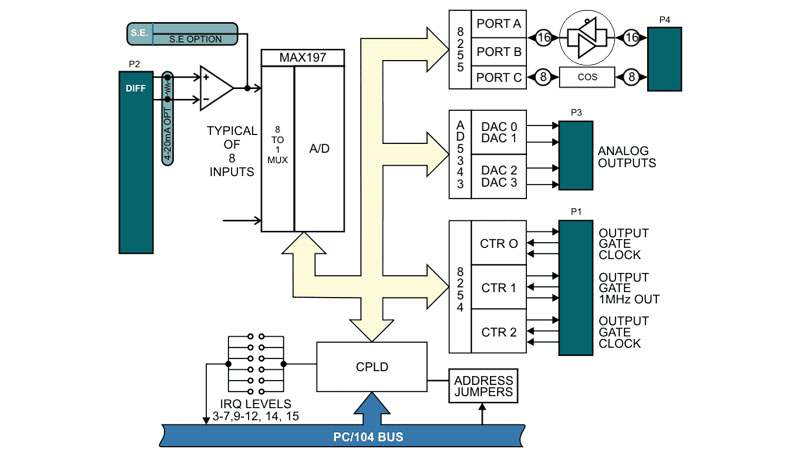

● PC/104-Based
● Channels: 4
● Voltage Ranges: 0-5V, 0-10V, ±5V, ±10V
● Conversion Frequency: 100K Conversions per second
● Resolution: 12-Bit
● Output Drive Capability: 3 mA per channel
● Power-Down Mode Current Draw: 1μA, maximum
● Relative Accuracy: ±2 LSB, typical
● Trigger Source(s): Software selectable for program command or programmable timer
● Programmable Peripheral Int.: 82C55A
● Channels: 24, pulled up to 5V via 10K (or pulled down to ground)
● Buffered Channels: 16 (ports A & B)
● Sink & Source Current: 64mA & 32mA respectively
● Modes supported: Mode 0 (1 and 2 are factory options)
● Change of State Detection 8 inputs (port C)
● Peripheral Interface Timer: Type 82C54
● Counters 3 x 16-Bit down counters
● Clock Frequency Output: 1Mhz
● Inputs/Outputs Fully Buffered
● Native Modes: Pulse on terminal count, retriggerable one-shot, rate generator, square wave, software triggered strobe, hardware triggered strobe.
● Software Support: Event Counter, Frequency Output, Frequency and Pulse Measurement
● Power Required: +5V @ 40mA, ±12 @ 30mA; with optional ±12V DC/DC conv. +5V @ 240mA
● Environmental: 0°C to +70°C standard, optional without DC/DC converter -40°C to +85°C
● Interrupt Requests: Eleven channels, IRQ 3-7, 9-12, 14, 15
● Interrupt Status Register: Indicates source(s) of interrupt
● Interrupt Enable/Disable: Software Controlled
● This product is designed to be in full compliance with CE requirements.
