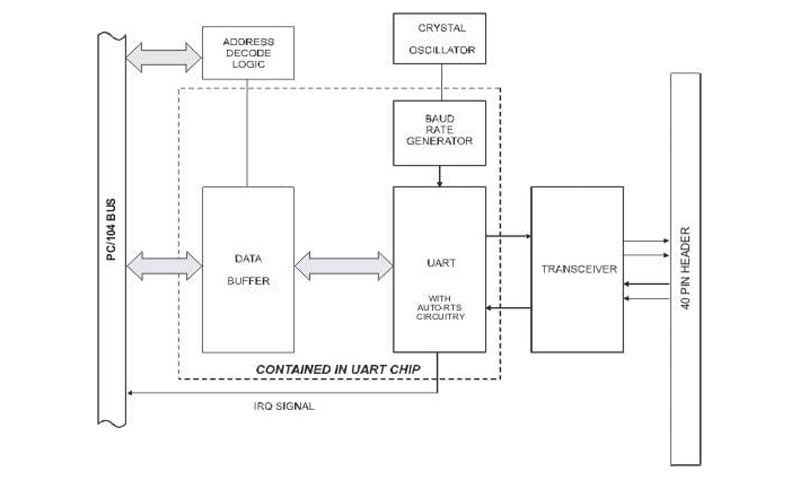

● PC/104
● I/O Connections: Via two 40 pin IDC type right angle connectors. There are eight pins per port plus common grounds.
● Character Length: 5,6,7, or 8 bits
● Parity: Even, odd, or none
● Stop Interval: 1, 1.5, or 2 bits
● Serial Data Rates: Up to 115.2K baud, asynchronous. A faster range of rates, up to 921.6K, is achieved by jumper selection (RS-232 is 230K max).
● Multidrop: Compatible with RS-485 specifications. Up to 32 drivers and receivers allowed on line. Driver/Receivers used are type 75ALS180. Compatible with RS-422 specifications. Up to ten receivers allowed on line.
● Address: ISA BUS address is set by jumpers on the board. A “Default” jumper determines whether the channel addresses are sequential or loaded from non-volatile memory on the board.
● Interrupts: Individual IRQs for each channel are stored onboard in non-volatile memory.
● Receiver Input Sensitivity: ±200 mV differential input
● Common Mode Voltage Range: +12V to -7V
● Transmitter Output Drive Capability: 60 mA with thermal shutdown. Jumper selectable terminations for input and output, by channel, are provided. Bias is also provided.
● Operating Temperature Range:
- 0 to 70°C on 2 and 4 port versions
- -40 to +85°C on the 8 port version (optional on 2 and 4 port versions)
● Storage Temperature Range: -50 to +120°C
● Humidity: 5% to 95% RH, non-condensing
● Power Required: +5 VDC at 80 mA typical, all outputs open
● This product is designed to be in full compliance with CE requirements.
