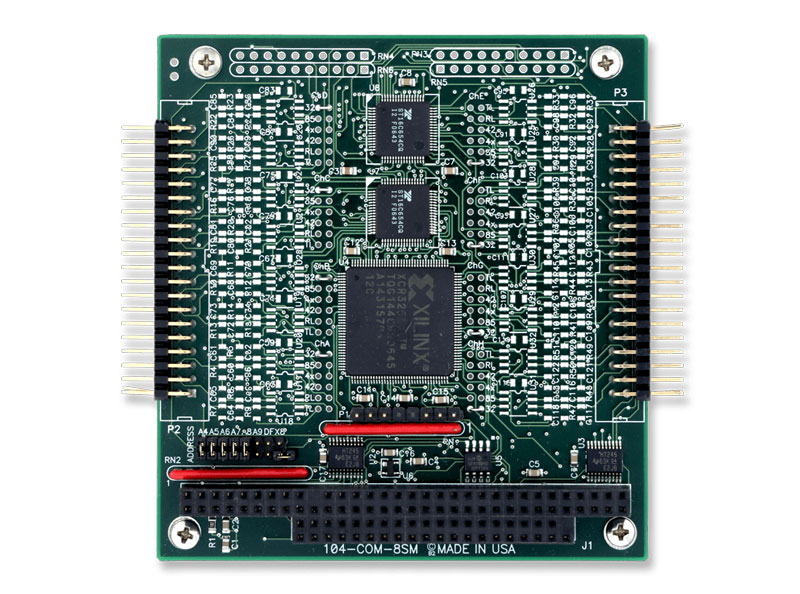

● 8, 4 or 2 RS-232 asynchronous serial COM ports
● Speeds up to 230.4K with 64-byte FIFO
● Programmable IRQ sharing simplifies system design and installation
● Low power required: +5VDC at 80mA typical
● Operates as a standard COM port in all operating systems
● Factory Options:
- 128-byte FIFO
- 0 to 70°C and -40 to +85°C versions available
- RoHS Available. Please contact us for ordering information
● Industrial Equipment Control
● Waveform/Audio Synthesis
● Stimulus-Response
● Test
The 104-COM232-8 series are supported by most operating systems and include a free DOS, Linux and XP -> 10, both 32 & 64 bit compatible software package. This includes sample programs and source code in “C” and Pascal for DOS, and Visual Basic, Delphi, and Visual C++ for Windows. Also included is a graphical setup program in Windows. An easy-to-use Windows terminal program simplifies verification of proper operation (also provided in a DOS version.)
