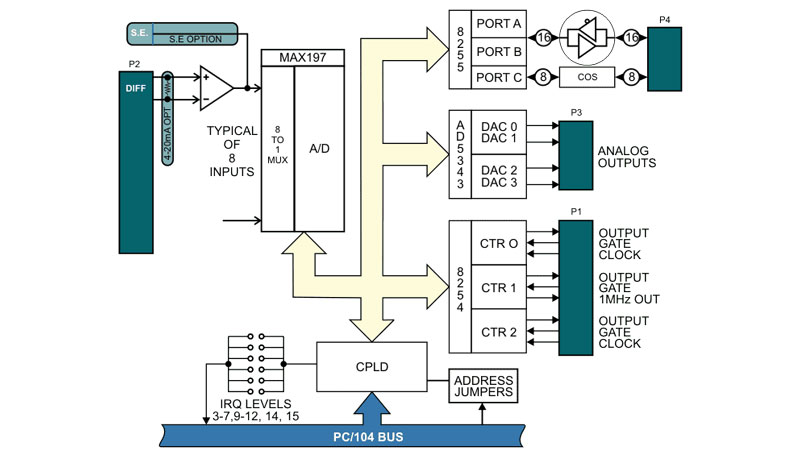

● PC/104-Based
● 8 Channels
● 50K Conversions per Second throughput, all channels simultaneously (Aggregate throughput of 400K conversions per second)
● 12-Bit Resolution
● 4 jumper selected output ranges per channel, 0-5V 0-10V ±5V ±10V
● Eight corresponding 4-20mA current sink outputs (external 8 to 36VDC excitation required)
● ±2 counts DAC Relative Accuracy (typical)
● 10μS DAC Settling Time (typical, to 3/4 scale)
● ±0.4% of Full Scale DAC Offset Error
● ±0.1% of Full Scale DAC Gain Error (typical)
● Drive Capability of 5mA per channel, Outputs are Short-Circuit Protected
● 30mA cumulative total drive from all DACs
● 4.096V Voltage Reference
● Type 82C54
● 3 x 16-Bit Down-Counters
● Counter 0 is an IRQ source (clock-tick interrupt) and frequency source (counter 0 output is available at P2 connector pin4)
● Counters 1&2 are chained (32-bit resolution) and dedicated as the ARB clock (an interrupt is available based on the DAC update from the ARB)
● 2MHz Input Clock Frequency
● +5V @ 210mA Power Consumption (typical, no load on the outputs)
● On-board DC/DC Converter allows operation on +5V Power
● Interrupt requests may be generated on channels 3-7 10-12 and 14-15
● Environment Tolerance: 0-70°C, 5% to 95% Humidity (non-condensing)(-40° to +85°C available with special order)
● This product is designed to be in full compliance with CE requirements.
