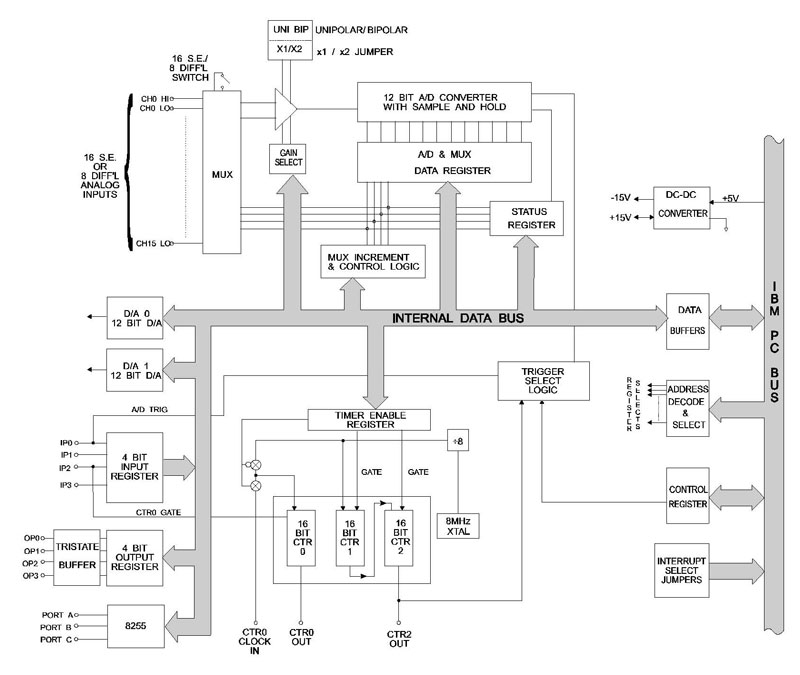

● ISA Bus
● Channels: 16 single-ended or 8 differential, switch selectable.
● Resolution: 12 binary bits.
● Accuracy: 0.1%.
● Input Voltage Modes: ±5V, ±10V, 0-10V
● Input Amplifier Gains: 1, 10, 100, 1000 (Under software control per channel).
● Coding: True binary for unipolar inputs and offset binary for bipolar inputs under jumper control.
● Conversion Time: 8 usec max. (100 KHz throughput)
● A/D Type: Successive Approximation.
● Monotonicity: Guaranteed over operating temperature range.
● Linearity: ±0.9 LSB.
● Zero Drift: ±2 PPM/°C.
● Gain Drift: ±2 PPM/°C.
● Trigger Source: Software Command, On-board Programmable Timer, or External Source.
● Channels: Two, independent.
● Type: 12-bit, double-buffered.
● Relative Accuracy: ±1 LSB.
● Output Ranges: 0-2.5V, 0-5V, 0-10V, +2.5V, ±5V, ±10V.
● Settling Time: 15 usec to ± 1 bit.
● Output Drive: 5 mA.
● Output Impedance: 0.5 ohms.
● Inputs
- Logic High: 2.0 to 5.0 VDC at 20 uA max.
- Logic Low: -0.5 to 0.8 VDC at -0.2 mA max.
● Outputs (DIO 0 thru DIO 7)
- Logic High: 2.4V minimum at 0.4 mA source.
- Logic Low: 0.5 V maximum at 8.0 mA sink.
● Inputs
- Logic High: 2.0 to 5.0 VDC at +10 uA max.
- Logic Low: -0.5 to +0.8 VDC at -10 uA max.
● Outputs (DIO 0 thru DIO 7)
- Logic High: 2.5 VDC min. at 200 uA source.
- Logic Low: 0.5 VDC max. at 1.7 mA sink.
● Type: 82C54-2 programmable interval timer.
● Counters: Three 16-bit down counters, two concatenated with 1 MHz clock as programmable timer. One counter may be driven by an external input to 10 MHz or driven by internal 1 MHz clock source.
● Output Drive: 2.2 mA at 0.45V (5 LSTTL loads).
● Input Gate: TTL/DTL/CMOS compatible.
● Clock Input Frequency: DC to 10 MHz.
● Active Count Edge: Negative edge.
● Minimum Clock Pulse Width: 30 nS high/50 nS low.
● Timer Range: 2.5 MHz to < 1 pulse per hour.
● Operating Temperature Range: 0° to 60°C.
● Storage Temperature Range: -40° to +100°C.
● Humidity: 0 to 90% RH, non-condensing.
● Size: 9.0 inches long (229mm)
● Weight: 10 oz.
● Power Required: +5 VDC, 800 mA.
● This product is designed to be in full compliance with CE requirements.
