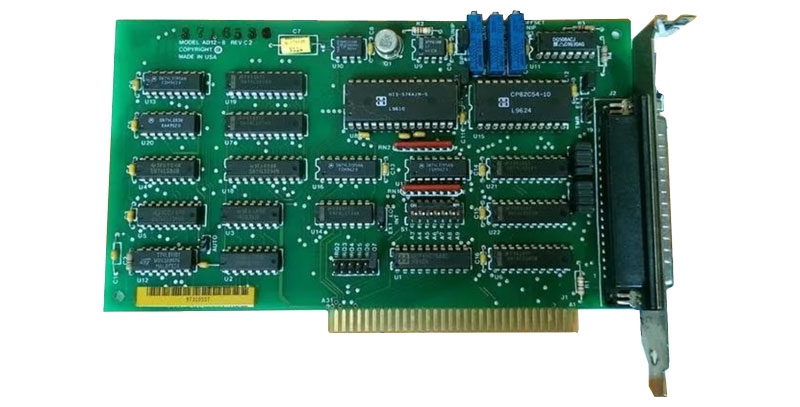

● PC ISA Bus Analog and Digital I/O Card
● Eight single-ended analog inputs
● 12-bit resolution
● Up to 40,000 conversions/second
● Programmable scan rate

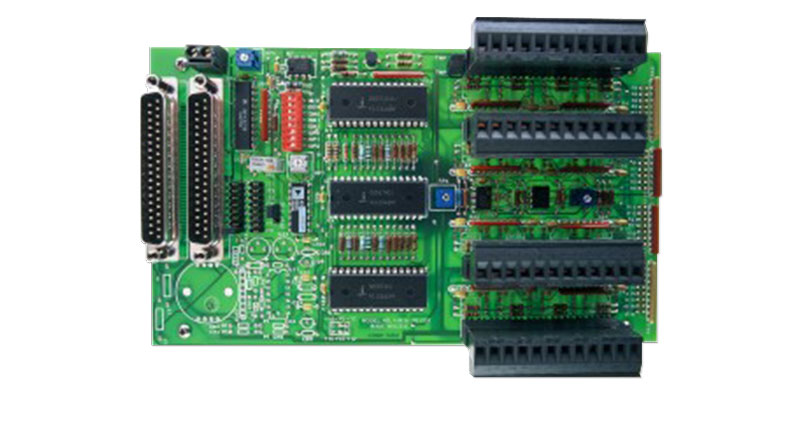

● Can be used with AIM-16 to support up to 128 differential inputs with programmable gains
● On-board counter/timer for event counting, pulse and waveform generation, and frequency measurement.
● Sixteen bits of digital I/O
● uffered precision reference voltage output
● Supports mixed Sensors: Thermocouples, RTDs, strain gages, voltage and current inputs
● Multiplexes 16 differential inputs to one analog single-ended output
● Cold junction compensation and break detect for thermocouple inputs.
● Gain programmable (0.5 to 1000) channel-by-channel
● Screw terminals for input terminations on plug-in blocks
● Equipment monitoring
● Environmental measurements
● Embedded data acquisition
● Education/Laboratory
● Industrial Automation
Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.
