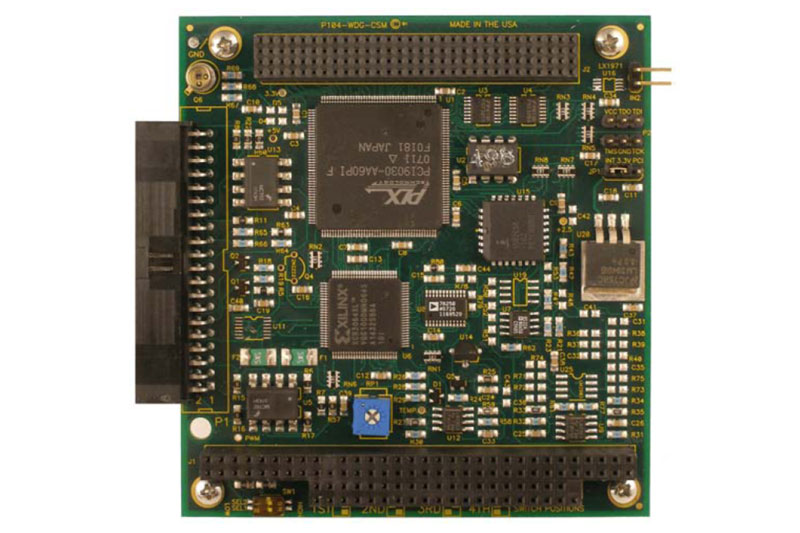

● PC/104 Plus Watchdog Timer card with software selectable timeout from 4 μsec
● Watchdog open collector reset outputs
● Temperature sensor with calibration pot
● Temperature monitor / alarm
● Temperature measurement with 8-bit A/D
● Fan status and speed control
● PCI/104 power monitor / limit alarm interrupt
● Opto-isolated input to trigger reset
● General purpose opto-isolated input
● Two isolated outputs, current limited
● TTL reset pushbutton input
● Two general purpose 8-bit A/D inputs
● External fused 5V and 12V power
● Light sensor for enclosure security
● Supported in DOS, Windows, Linux
● PC/104 bus pass through connector
● RoHS Available. Please contact us for ordering information
● Equipment monitoring
● Environmental measurements
● Embedded OEM
● Education/Laboratory
● Portable
● Industrial Automation
● Precision Measurement
● Analysis, Monitoring, and Control
Sample programs and source code in “C” and Pascal for DOS, and Visual Basic, Delphi and Visual C++ for Windows on CD ships with the hardware you order. Also incorporated for the P104-WDG-CSM is support for use in most operating systems and includes a DOS, Linux, and Windows XP -> 10, both 32 & 64 bit compatible software package. Third party support for watchdog timer consists of a standard dll interface usable from most popular application programs. Linux support consists of installation files and basic samples for programming from user level via an open source kernel driver.
