● 12-bit resolution A/D
● Designed to pair with an A/D board to increase channel count and signal conditioning capabilities
● 32 single-ended or 16 differential inputs
● 6 software programmable ranges:±25mV, ±50mV, ±0.1V, ±2.5V, ±5V, ±10V

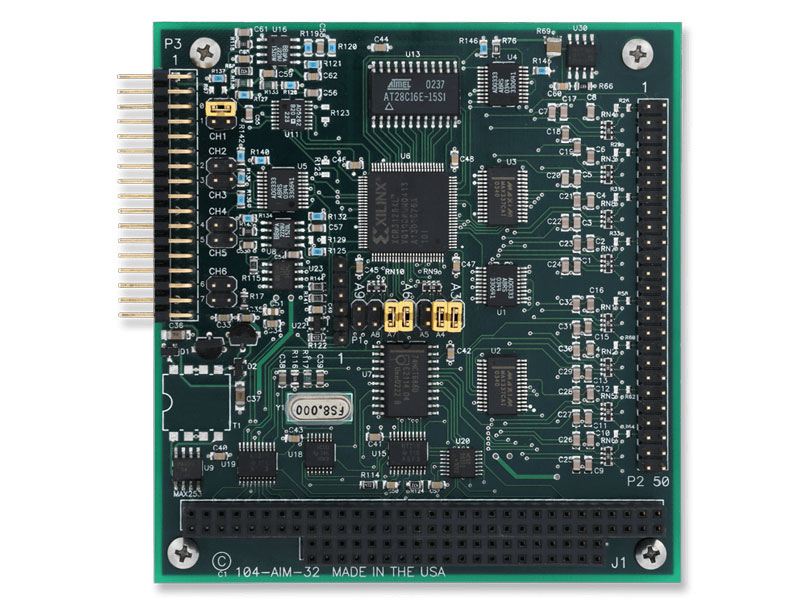

● Up to 7 104-AIM-32s can be stacked per A/D board for up to 224 S.E. or 112 diff. inputs
● +5VDC only operation
● Precision 15VDC sensor excitation
● 0 to 70°C operating temperature (-40 to +85°C Optional)
● Input Signal Conditioning Options:
- 4-20mA inputs
- RTD measurement
- Thermocouple measurement
- Voltage divider on each input
- RC filters on each input
- Bridge completion configuration
● RoHS Available. Please contact us for ordering information
● Equipment monitoring
● Environmental measurements
● Embedded OEM
● Education/Laboratory
● Portable
● Industrial Automation
● Precision Measurement
● Analysis, Monitoring, and Control
ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first. A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.
