● PC/104-Plus
● PCI Bus: Rev. 2.3
● PC/104 Bus: Feedthrough only, no connection to the P104-COM232-8
● I/O Space: Requires 4k
● Data Size: 5, 6, 7 or 8 bits
● Stop bit length: 1, 1.5 or 2 bits
● Parity: Odd, even, none, forced to 1, or forced to 0k
● Break condition: On or off
● Maximum Baud Rate: 460.8Kb/s (transceiver limit with full load)
● Full Duplex Operation

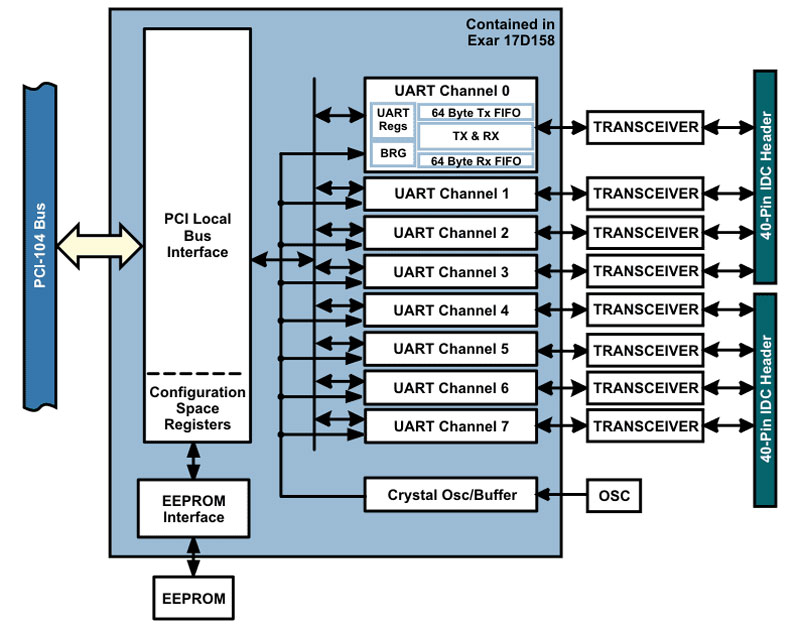

● Eight 64 Byte Transmit FIFO, 64 Byte Receive FIFO (16C550 FIFO = 16 Bytes)
● S/W programmable FIFO trigger levels (16C550 trigger levels are fixed)
● 12 standard registers for UART monitoring and control plus special registers
● Loop-back mode
● Scratch pad register
● Receiver Input Resistance: 3K to 7K ohm
● Receiver Input Sensitivity: ±3V
● Receiver Input Voltage Range: ±15V
● Driver Slew Rate: 30V/μS
● Driver Load Impedance: 3K to 7K ohm
● Driver Output Signal Level
- Loaded ±5V
- Unloaded ±15V
● Transceiver ESD Characteristics
- ±15KV Human Body Model
- ±15KV Air Discharge
- ±8KV Contact Discharge
● Communications Interface: Eight channels split between two 40 pin male headers
● Meets or exceeds the IEEE RS-232 standard
● Operating Temperature Range:
- Commercial: 0° to 70°C
- Industrial: -40°C to +85°C
● Storage Temperature Range: -65°C to +125°C
● Humidity: 5% to 95% RH, non-condensing
● Power Required: 50mA quiescent, 150mA maximum
●CE testing & approval must be done at the system level, in the designed enclosure, and is not done on individual boards.
