● 16, 32, or 48 individually optically isolated solid-state outputs
● “A” version supports Simultaneous output across all ports via external rising edge on P2 pin 50
● Solid-state design permits high-speed switching and long-life expectancy
● Load voltages up to 60 Volts, current up to 2A
● Lower cost per point than externally-racked solid-state relay modules
● Optically isolated channel to channel and channel to ground
● Universal PCI, PCI-X, 3.3V and 5V compatible (Call for PCI-Express availability)
● RoHS Available. Please contact us for ordering information
● Support for Wind River VxWorks (call for ordering information)
● POS (Point-of-sale) Systems
● Gaming Machines
● Telecommunications
● Industrial Automation
● ATM (Automated Teller Machine) Systems
● Multiple terminal control
● Office Automation
● Kiosks

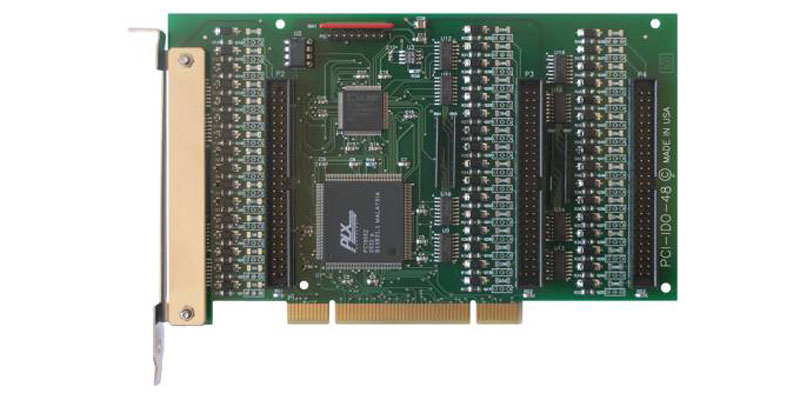

There are 48-bit, 32-bit, and 16-bit versions.
These cards are supported for use in most operating systems and include a free DOS, Linux (including Mac OS X) and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in “C” for DOS, and Visual Basic, Delphi, and Visual C++ for Windows. Also incorporated is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes example LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, etc.
