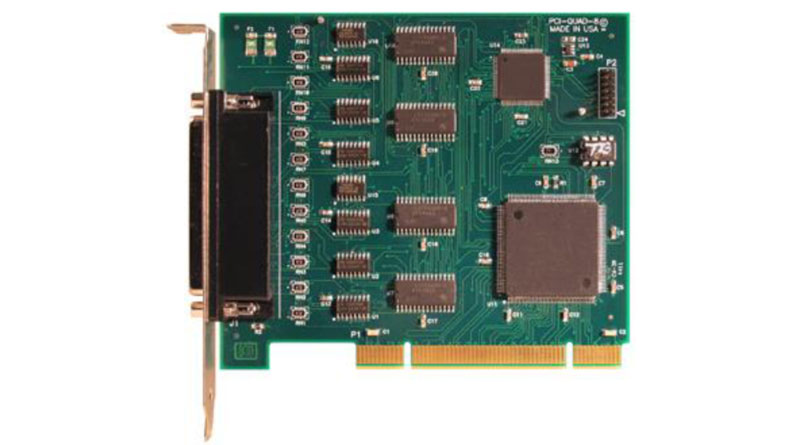

● Eight or Four-counter quadrature decoder
● Single-ended or differential inputs for up to eight encoders (A, B & Index)
● Programmable clock source (high/low) for digital filtering on inputs
● Programmable active index polarity
● Per counter software control corrects reversed A / B wiring and selects flag for interrupt source
● Resettable fused 5V output available to power encoders or general purpose
● High-density DB78 male I/O connector with screw locks
● RoHS Available.
● Software Drivers Included for Windows XP-> 10, both 32 & 64 bit；Support for Wind River VxWorks
● Automatic Test Systems
● Laboratory Automation
● Robotics
● Machine Control
● Security Systems
● Energy Management
The card is supported for use in most operating systems and includes Linux and Windows compatible software packages. This package contains sample programs and source code in Delphi and Visual C++ for Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes Windows XPe.
