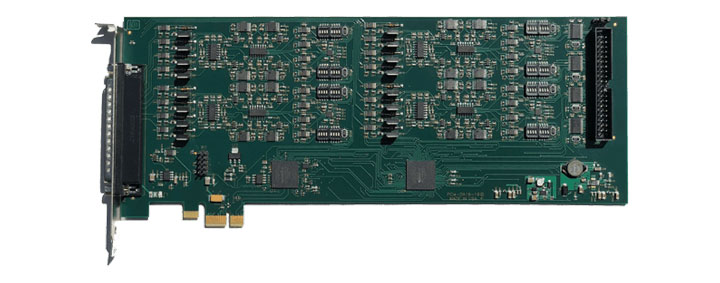

● 16-channel, 16-bit, digital-to-analog PCI Express Card
● Software / Hardware compatible with PCI-DA12-16
● >125k conversions per channel per second
● Dip-switch selectable analog output ranges of 2.5V, 5V, 10V, ±2.5V, ±5V, ±10V, 4-20mA
● Individual or simultaneous update of the DACs
● DACs restricted at power-on to prevent spurious outputs
● 24-bits of digital I/O
● Three 16-bit down counters (emulated 82C54)
● Can use the counter-timer to generate DAC updates, and/or IRQs
● VCCIO voltage available to the user via 0.5A resettable fuse
● RoHS Available
● Support for Wind River VxWorks (call for ordering information)
● Equipment monitoring
● Environmental measurements
● Embedded OEM
● Education/Laboratory
● Industrial Automation
● Precision Measurement
The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in C#, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.
