● PCI Express

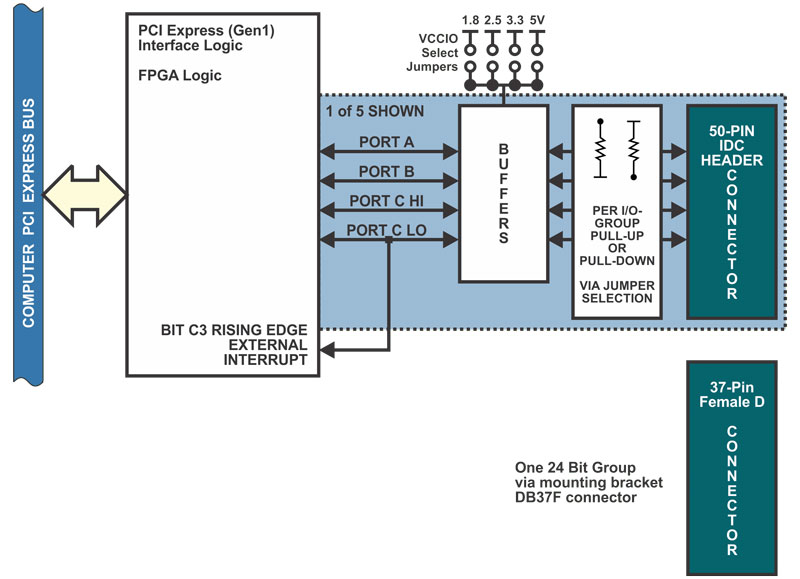

● Lines: 144; (6 Groups) Ports A, B, and C
● Type: Emulates 8255 compatible chips
● Logic Level: VCCIO
● Pull-up/down: 10k ohm, jumper selectable
● 5 Volt:
- Input Low ≤ 1.5V, ≤2μA
- Input High ≥3.5V, ≤2μA
- Output Low ≤ 0.55V @ 32mA
- Output High ≥3.8V @ 32mA
● 3.3 Volt:
- Input Low ≤ 0.8V, ≤2μA
- Input High ≥2.0V, ≤2μA
- Output Low ≤ 0.55V @ 24mA
- Output High ≥2.4V @ 24mA
● 2.5 Volt:
- Input Low ≤ 0.7V, ≤2μA
- Input High ≥1.7V, ≤2μA
- Output Low ≤ 0.5V @ 8mA
- Output High ≥1.9V @ 8mA
● 1.8 Volt:
- Input Low ≤ 0.63V, ≤2μA
- Input High ≥1.17V, ≤2μA
- Output Low ≤ 0.45V @ 4mA
- Output High ≥1.2V @ 4mA
● Operating Temperature 0° to +70°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Card Dimensions: 10.5″ long by 4.20″ (106.7mm) high (seated)
● This product is designed to be in full compliance with CE requirements.
