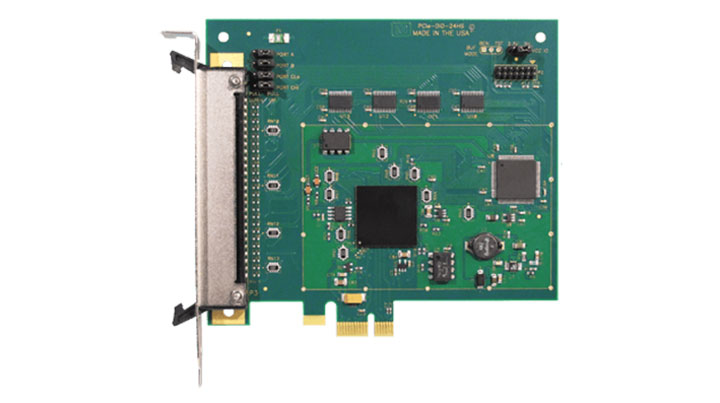

● x1 lane PCI Express digital I/O board
● 24 high-current DIO lines
● IRQ generation from Port C bit 3, and Counter A2 (“C” models) and/or Change-of-State (COS) Detection (“S” models)
● DIO lines buffered
● Four and eight bit ports independently selectable for inputs or outputs
● User configurable 10k ohm Pull-up/Pull-down resistors on DIO lines
● Jumper selectable VCCIO (5V, 3.3V)
● VCCIO voltage available to the user via 0.5A resettable fuse
● Latching 50 pin connector
● FACTORY OPTIONS:
- RoHS compliant version
- Quick-disconnect tab on mounting bracket for wiring harness or cable shield ground (with non-latching 50 pin connector)
- Industrial temperature operation (-40°C to +85°C)
- Support for Wind River VxWorks (call for ordering information)
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Security Systems, Energy Management
● Industrial Automation
● Factory Automation
● Laboratory Automation
● Embedded OEM
The card is supported for use in most operating systems and includes a free DOS, Linux (including macOS), and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, vxWorks, etc.
