● x1 lane PCI Express Card
● 96 Lines of Digital Input/Output
● Four and Eight Bit Ports Independently Selectable for Inputs or Outputs
● All 96 I/O Lines Buffered by Transceivers on the Card*
● I/O Buffers can be Enabled/Disabled under Program Control
● Pull-Ups resistors on I/O Lines for Contact Monitoring etc.
● +5 VDC Output with Resettable Fuse Available on each I/O Header

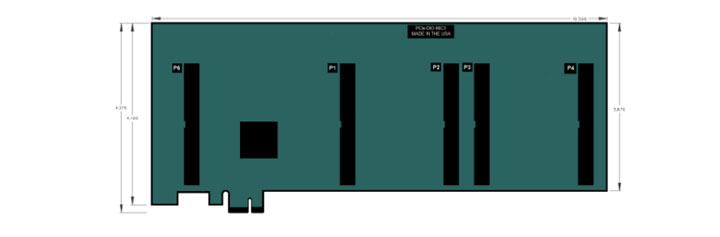

● Four 50 Pin DIO Header Connectors on Board are Compatible with Industry-Standard I/O Racks
● Three Field Configurable 82C54 Counter/Timers on First 50 Pin Header
● Strain Relief for Ribbon Cables Routed through Cutout on Mounting Bracket
● Support for Wind River VxWorks (call for ordering information)
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Security Systems, Energy Management
● Industrial Automation
● Factory Automation
● Laboratory Automation
● Embedded OEM
The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.
