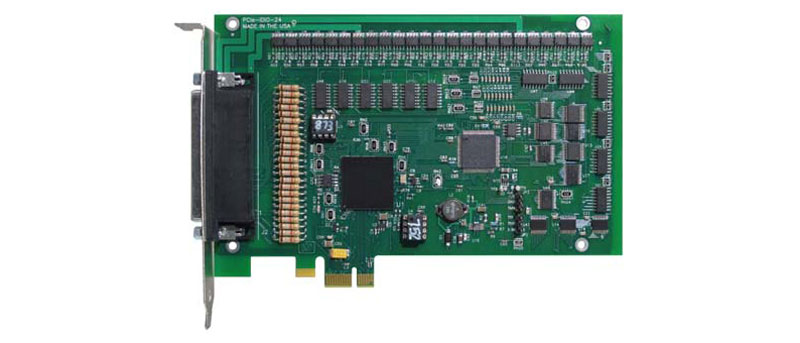

● 24 optically isolated, non-polarized digital inputs
● Software configurable filters on inputs for electrically noisy environments
● Can detect input state change and assert interrupt
● 24 optically isolated high-side FET switches
● Opto-couplers rated for 2.5kV isolation
● Four optically isolated output groups and two optically isolated input groups
● 8 non-isolated TTL/CMOS I/O lines
● FACTORY OPTIONS:
- Extended temperature operation (-40° to +85°C)
- 12-channel version (with 4 TTL I/O) available
- Input only and output only versions available
- RoHS compliant version
- Support for Wind River VxWorks (call for ordering information)
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Security Systems, Energy Management
● Industrial Automation
● Factory Automation
● Laboratory Automation
● Embedded OEM
The card is supported for use in most operating systems and includes a free DOS, Linux (including macOS), and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, vxWorks, etc.
