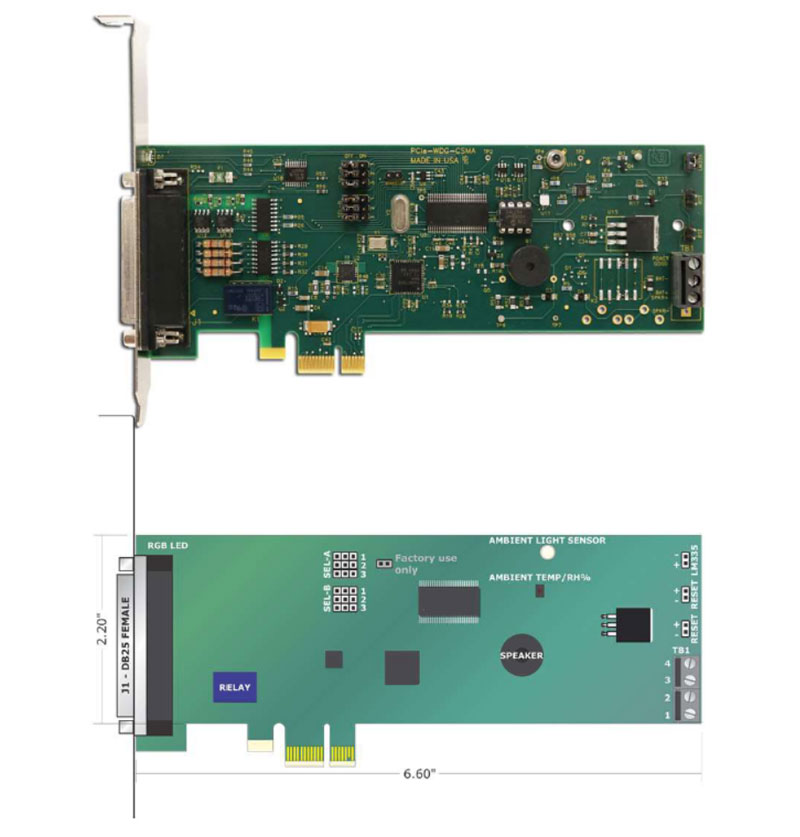

● Low Profile PCI Express watchdog timer and computer status monitor card
● Open collector transistor output to ground power good line or reset switch via pass through upon timeout
● DPDT relay contacts notify external devices when reset signal occurs
● 2 LVTTL outs & 2 LVTTL inputs (5V tolerant)
● DB25 female connector on mounting bracket
● RGB LED at mounting bracket provides at-a-glance status information
● Onboard speaker
● EEPROM for configuration and firmware
● Advanced Model Features：
- Analog to Digital Converter with integrated temperature and humidity sensors and multiplexed inputs
- +12V and +3.3V PCIe Power Monitor
- Ambient light sensor
- External LM335 temperature sensor
- 4 Isolated digital inputs accept up to 31VDC
- 2 Isolated FETs switch from 5 to 34VDC
● FACTORY OPTIONS:
- Extended temperature operation (-35°C to +70°C)
- RoHS compliant versions
- Low Profile mounting bracket
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Security Systems, Energy Management
● Industrial Automation
● Factory Automation
● Laboratory Automation
● Embedded OEM
