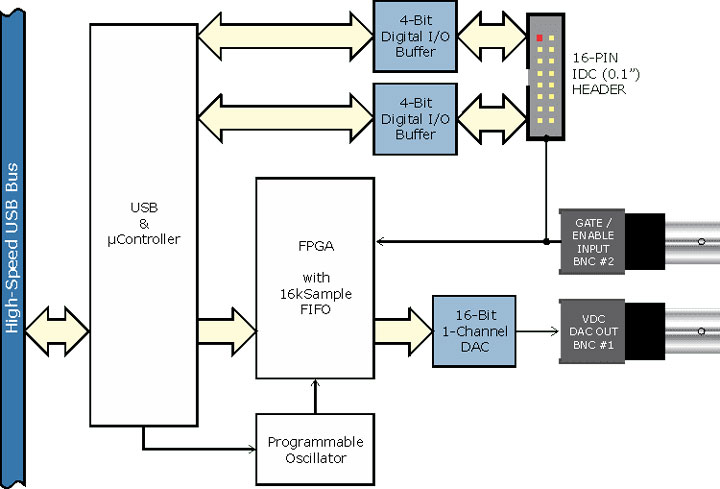

● USB USB 2.0 or 3.0+, High-Speed
- USB 3.0+ Compatible
● Output Connector BNC, female
● Analog Output 1, Single-Ended
● Resolution 16-bit
● Unipolar Ranges 2.5V, 5V, 10V
● Bipolar Ranges ±2.5V, ±5V, ±10V
● Waveform Output Rate 1kHz to 8MHz via onboard oscillator
● Relative Accuracy ±4 LSB, typical
● Differential Non-Linearity ±2 LSB, typical
● Settling Time 70ns, typical
● Output Current ±6mA
● Waveform Features 16k Sample FIFO (32k Bytes), GATE input, Onboard intelligence
● I/O Connector Right-angle IDC 16-pin (0.1″) boxed and keyed header
● Gate Connector BNC, female; also on IDC pin 16
● 5V Logic
- High-output Voltage 3.8VDC, min
- Low-output Voltage 0.55VDC max
- Sink Current 32mA
- Source Current 32mA
● 3.3V Logic
- High-output Voltage 2.4VDC, min
- Low-output Voltage 0.55VDC max
- Sink Current 24mA
- Source Current 24mA
● 5V Logic
- High-input Voltage 3.5VDC min, 5.5VDC max
- Low-input Voltage 1.5VDC max, -0.5VDC min
● 3.3V Logic
- High-input Voltage 2.0VDC min, 5.5VDC max
- Low-input Voltage 0.8VDC max, -0.5VDC min
● Size 3.550 x 3.775 inches (PC/104-size)
● Enclosure Size 3.9 x 4.075 x 1 inches
● Weight 75.5 grams
