● 4, 8, or 16 analog outputs with 12 or 16-bit resolution
● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
● Unipolar and bipolar output ranges of 0-10V, ±5V (contact factory for additional ranges)
● Real-time hardware calibration per channel
● Update outputs individually or simultaneously at speeds up to 4kHz
● Two 16-bit analog inputs and 16 lines of digital I/O
● All digital I/O lines buffered with 10mA source, 24mA sink current capabilities
● Resettable 0.5A fused +5V available to the user
● Includes external AC to 12V @ 1Amp DC regulated adapter
● Connections made via industry-standard 37-pin D-Sub connectors
● USB/104 form-factor for OEM embedded applications

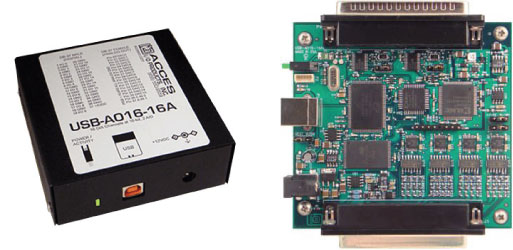

● Standard (enclosed) version includes external 12V power supply (USB-PWR-12V)
● OEM version (board only) features PC/104 module size and mounting compatibility
● Alternate micro-fit embedded USB header connector
● Custom high-speed function driver (non-HID)
● Type B USB connector features industrial strength and high-retention design
● Small, (4″ x 4″ x 1.25″) rugged, industrial enclosure
● Labview VI driver
● Now with Firmware 2.0 features!
- Onboard Watchdog Timer
- configurable power-on defaults
- digital input debouncing and latching
- digital output Pulse Width Modulation (PWM) and Matrix Mapping
● Extended operating temperature (-40° to +85°C)
● Analog output ranges (±10V, 0-5V, or nearly anything you specify!)
● RoHS Available. Please contact us for ordering information
● Support for Wind River VxWorks (call for ordering information)
● Process Control
● Light Control
● Motion Control
● Mobile Solutions
● Test Equipment
● Kiosks
● Robotics
● Machine Control
● Laboratory Monitoring and Control
● Security Systems
● Industrial Automation
● Embedded OEM
