● High-Speed USB 2.0 device, USB 3.0 compatible
● Fifteen independent 16-bit counter/timers (5 x 82C54-10)
● Clock, gate and out signals from all 15 channels buffered and accessed via 1 connector
● PC/104 module size (3.550″ by 3.775″) and mounting compatibility
● Standard configuration adaptor pre-configured for event counting, frequency measurement, pulse width measurement, or frequency generation
● Removable screw-terminal board for easy wiring
● User wiring adaptor card provided for flexible yet easy counter concatenation/configuration
● Rugged small-sized (4″ x 4″ x 1.25″) steel enclosure
● Type B USB connector features industrial strength and high-retention designe
● FACTORY OPTIONS：
- Extended operating temperature (-40° to +85°C)
- External power components and AC/DC adapter
- Screw terminals for power input provide high retention connection
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- RoHS Available.
- Support for Wind River VxWorks (call for ordering information)
● Home
● Portable
● Laptop
● Education
● Laboratory
● Industrial Automation
● Embedded OEM

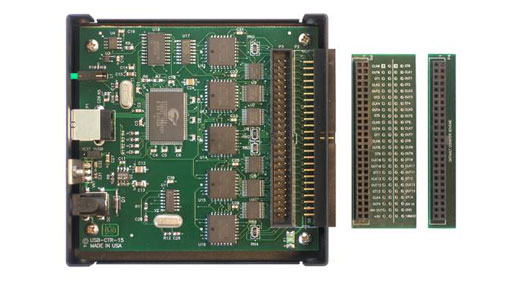

The USB-CTR-15 is available with optional cable assemblies, screw termination boards, and an optional external AC/DC power supply.
