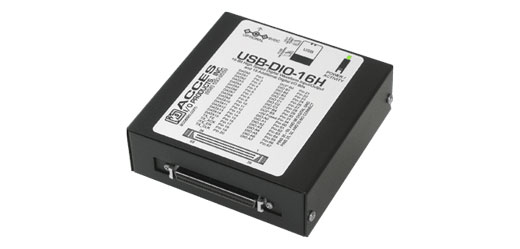

● High-speed USB 2.0 device
● 16 high-speed digital I/O lines feature continuous, sustained throughput up to 16 MB/s
● Capable of 80 MB/s bursts with flexible synchronous clock and handshaking capabilities
● Continuous streaming over USB with no maximum waveform length
● On-board embedded FIFO memory up to 128 kByte
● 18 additional digital I/O lines arranged in 4 programmable groups
● All outputs buffered with 24 mA sink/source capabilities
● Type B USB connector features high-retention design
● Standard 68-pin SCSI high density latching connector
● Custom high-speed function driver
● Alternate embedded USB connector
● All required power drawn from USB port, no external power adapter required
● Small, (4″ x 4″ x 1.25″) rugged industrial enclosure
● PC/104 module size and mounting compatibility
● Industrial strength and high-retention Type B USB connector
● Now with Firmware 2.0 features!
- Onboard Watchdog Timer
- Configurable power-on defaults
- Digital input debouncing and latching
- Digital output Pulse Width Modulation (PWM) and Matrix Mapping
● FACTORY OPTIONS:
- LVTTL for 3.3V applications
- Input only, output only, and input/output versions
- OEM version (board only) features PC/104 module size and mounting compatibility
- External power for high current capabilities
- Extended temperature and DIN rail mounting provisions
- RoHS available, please contact us for ordering information
- Support for Wind River VxWorks (call for ordering information)
● Testing and Debugging
● Laboratory Automation
● Manufacturing Test
● Image Capture
● Process Monitoring
● Datasource Emulation
● Embedded OEM

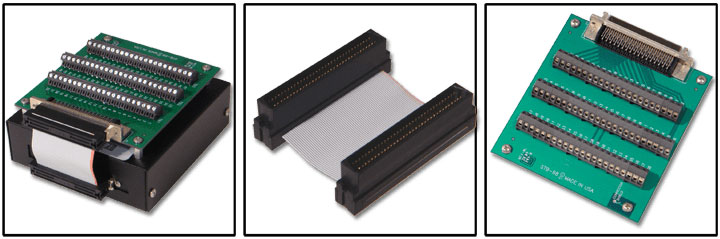

Available accessories include a wide variety of cables and screw terminal boards for quick and easy connectivity.
