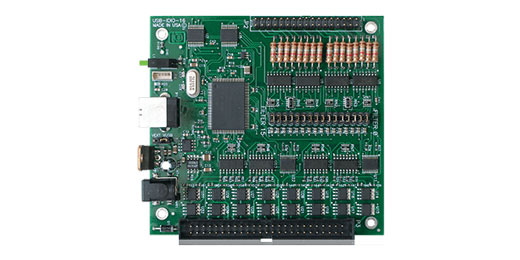

● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
● 16 individually optically isolated inputs (channel to channel and channel to ground)
● Polarity insensitive AC/DC inputs accept up to 31 VDC or AC RMS
● Jumper selectable filtering per input channel for AC or voltage transients
● 16 optically isolated fully protected high-side FETs capable of switching up to 2A

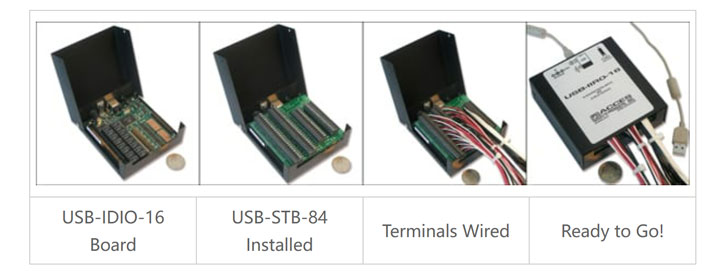

● Internal removable screw terminal board for easy wiring
● All power drawn from USB port, no external power adapter required
● USB/104 form-factor for OEM embedded applications
● Small (4″ x 4″x 1.4″) rugged industrial enclosure
● Custom high-speed function driver
● PC/104 module size and mounting compatibility
● Type B USB connector features industrial strength and high-retention design
● Now with Firmware 2.0 features!
- Onboard Watchdog Timer
- Configurable power-on defaults
- Digital input debouncing and latching
- Digital output Pulse Width Modulation (PWM) and Matrix Mapping
● FACTORY OPTIONS：
- Input only and solid state output only versions
- Eight or four input/output versions
- External power for high current capabilities
- Extended temperature and DIN rail mounting provisions
- OEM version (board only) features PC/104 module size and mounting compatibility
- RoHS compliant product
- Support for Wind River VxWorks (call for ordering information)
● Home
● Portable
● Laptop
● Education
● Laboratory
● Industrial Automation
● Embedded OEM
Available accessories include a wide variety of cables and screw terminal boards for quick and easy connectivity.
