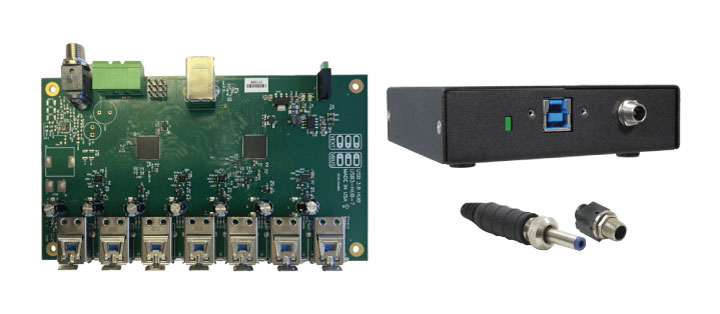

● 7-port USB 3.1 Gen 1 hub with data transfers up to 5Gbps
● Rugged, industrial grade (-40?C to 85?C) operation
● Locking upstream, downstream, and power connectors prevent accidental disconnects, perfect for USB3 Vision applications
● SuperSpeed (5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) transfers supported
● Supports bus-powered and self-powered modes, accessible via DC power jack and a pair of screw terminals
● LED for power, and per port RGB LEDs to indicate overcurrent fault, High-Speed, and SuperSpeed
● Compact, steel, low-profile enclosure
● RoHS compliant
● FACTORY OPTIONS：
- OEM (board only) version
- Economy version equipped with standard, instead of high-retention connectors
- Wide input external power accepts from 7VDC to 28VDC at the DC power jack or screw terminals
- Tantalum capacitors for flight and space-based applications
- Conformal coating
- We offer a 4-port version that has a board assembly in a PC/104 mechanical form factor: USB3-104-HUB
● Military/Mission Critical
● Government
● Medical
● Industrial Automation
● Transportation/Automotive
● Embedded OEM
● Home
● Portable
● Laptop
● Security
● Education
● Laboratory
● Kiosk
Available accessories include the MP104-DIN for DIN rail mounting the USB3-HUB-7 and an external instrument grade power supply.
