● USB 3.1 SuperSpeed, Hi-Speed, Full-Speed, Low-Speed
- Super (5Gbps) / Hi (480Mbps) Full (12Mbps) / Low (1.5Mbps)
● USB 2.0 Compatible
● USB 1.1 Compatible

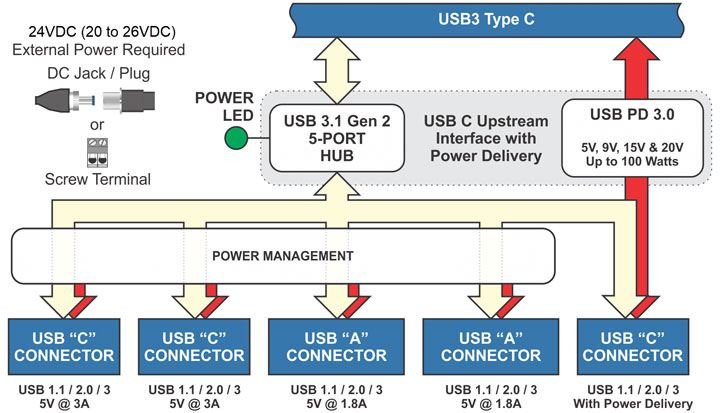

● One upstream and one downstream type C port supports the full PD3.0 standards of 20V, 15V, 9V, and 5V power at up to 5A
● Two downstream Type C ports support 3A
● Two downstream Type A ports USB Battery Charging v1.2 and Apple Charging standards (up to 1.8A)
● USB 3.0 was renamed to “USB 3.1 Gen 1” and operates at up to 5Gbps
● USB 3.1 Gen 2 supports 10GGbps
● Operating Temperature Range: -40°C to +85°C
● Storage Temperature -40° to +85°C
● Humidity 5% to 95% , non-condensing
● Board Dimension: 3.550 x 3.775 inches
● Box Dimension: 3.985 x 3.990 x 1.045 inches
● Weight:
- 304 grams (in enclosure)
- 85 grams (-OEM board only version)
● Type A Latching:
- Retention up to 50 Newtons
- Physical shock: Per EIA-364-27
- Condition H (11ms 30G)
- Vibration: Per EIA-364-28D Condition V, Test A
● Type B and A: 8 Newtons disconnect non-locking
● DC Power Jack (locking)
- Vibration: Mil-Std 202G Method 201A
- Insulation Resistance: MIL-STD 202G Method 302 Condition B
- Thermal Shock: MIL-STD 202G Method 107G
- Operating Temperature Rating: -40 °C to +105 °C(-40oF to +221°F)
● DC Power Jack (non-locking): 2.22 Newtons disconnect
● 6’ USB3 cable Type C to Type C
● 6’ Type A to Type A option cable
● 20 to 26VDC @ 10A external power required
● Connect via screw terminals, a locking DC jack / plug or standard jack / plug
● Upstream and Downstream PD 100W @ 5V, 9V, 15V, 20V
● Downstream C: 5V @ 3A
● Downstream A: 5V @ 1.8A
● This product is designed to be in full compliance with CE requirements.
