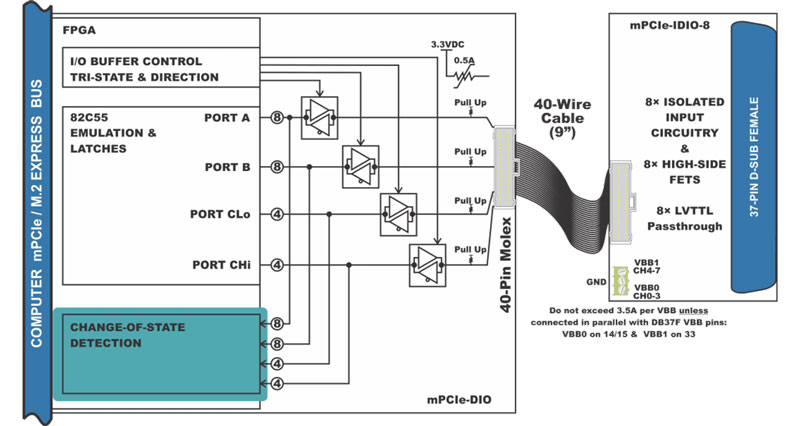

● PCI Express Mini Card: Type F1 “Full Length” V1.2
● Number: 8 (or 4)
● Type: Non-polarized, optically isolated from each other and from the computer (CMOS compatible)
● Voltage: 3 to 31 DC or AC RMS (40 to 10000Hz)
● Isolation: 300V channel-to-ground and 150V channel-to-channel
● Resistance: 1.8KΩ in series with opto-coupler
● Filter Response
- Rise-time: 4.7 ms
- Fall-time: 4.7 ms
● Non-Filter Response
- Rise-time: 10 μs
- Fall-time: 30 μs
● Number: 8 (or 4)
● Type: High Side Power MOSFET Switch.Protected against short-circuit, over-temp, ESD; drives inductive loads.
● 5 to 34 VDC
● Current Rating: 2A maximum
● Turn On time: 90μsec (typical)
● Turn Off time: 110μsec (typical)
● Number of lines: 8 or 4 programmable as all ins or all outs
● LVTTL Inputs
- Logic High: 2.0V to VCCIO (3.3VDC, 5VDC tolerant)
- Logic Low: 0V to 0.8V
● LVTTL Outputs
- Logic High: 2.0V (min) 24mA source
- Logic Low: 0.55V (max) 24mA sink
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +3.3VDC @ 360ma (typical)
mPCIe card characteristics
● Weight:6.2 grams
● Size: Length: 50.95mm (2.006″); Width: 30.00mm (1.181″)
● I/O connector:
- On-card: Molex 501190-4017 40-pin latching
- Mating: Molex 501189-4010
Isolation board characteristics
● Weight: 38.2 grams, (+11.2 grams for the 9″ cable)
● Size (Mobile-ITX sized)：Length: (2.952″)；Width: (1.1.772″)
● I/O connector:
- On board: Female, D-Sub Miniature, 37-pin
- Mating: Male, D-Sub Miniature, 37-pin
● This product is designed to be in full compliance with CE requirements.
