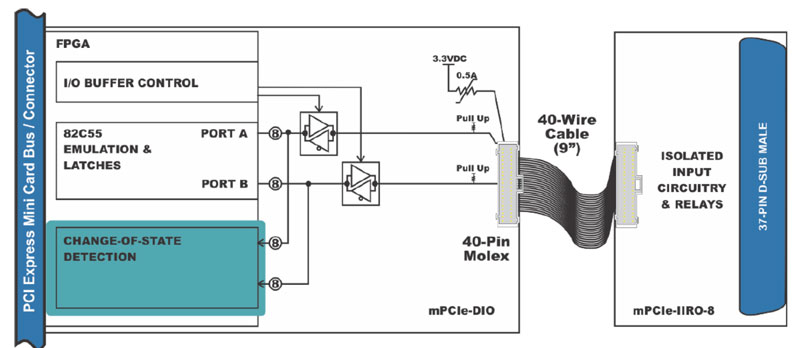

● PCI Express Mini Card: Type F1 “Full Length” V1.2
● Number: 8 (or 4)
● Type: Non-polarized, optically isolated from each other and from the computer (CMOS compatible)
● Voltage: 3 to 31 DC or AC RMS (40 to 10000Hz)
● Isolation: 500V channel-to-ground and channel-to-channel
● Resistance: 1.8KΩ in series with opto-coupler
● Filter Response
- Rise-time: 4.7 ms
- Fall-time: 4.7 ms
● Non-Filter Response
- Rise-time: 10 μs
- Fall-time: 30 μs
● Number: 8 (or 4)
● Type: 5 Form C (SPDT) and 3 Form A (SPST), Ag with Au clad,single crossbar for mPCIe-IIRO-8; 4 Form C for mPCIe-IIRO-4
● AC Load: 0.5A at 125 VAC (62.5 VA max)
● DC Load: 1A at 24 VDC (30W max)
● Switching Voltage: 125 VAC, 60 VDC, max
● Switching Current: 1A max
● Contact Resistance: 100 mΩ, max
● Contact Life: 5 million operations, min
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +3.3VDC @ 730ma (typical), all relays on
mPCIe card characteristics
● Weight:6.2 grams
● Size: Length: 50.95mm (2.006″); Width: 30.00mm (1.181″)
● I/O connector:
- On-card: Molex 501190-4017 40-pin latching
- Mating: Molex 501189-4010
Isolation board characteristics
● Weight: 51.4 grams, (+11.2 grams for the 9″ cable)
● Size: Length: (2.835″); Width: (2.362″)
● Mounting provision: ×4 0.125″ mounting holes for size 4 hardware
● I/O connector:
- On-card: On board: Male, D-Sub Miniature, 37-pin
- Mating: Female, D-Sub Miniature, 37-pin
● This product is designed to be in full compliance with CE requirements.
