● PCI Express Mini Card: Type F1 “Full Length” V1.2
● Receiver Type: ISL32173

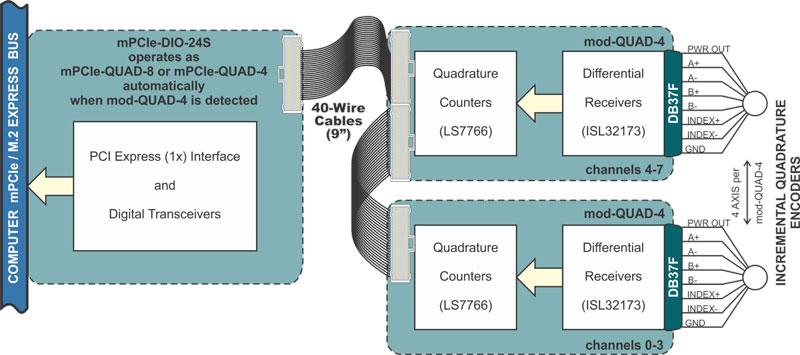

● Configuration: Phase A, B, and Index; Single Ended or Differential
● Channels: 8 or 4
● Common mode: -7V to 12V
● Differential Inputs: -9v to 13V
● Sensitivity: ±200mV
● Hysteresis: 30mV typical
● Impedance: Internal 48kω minimum
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required:+3.3VDC @ 430mA using self power (+ encoder power); +5.0VDC @ 165mA with external power (+ encoder power)
mPCIe card characteristics
● Weight:6.2 grams
● Size: Length: 50.95mm (2.006″); Width: 30.00mm (1.181″)
● I/O connector:
- On-card Molex 501190-4017 40-pin latching
- mating: Molex 501189-4010
● This product is designed to be in full compliance with CE requirements.
