● PCI Bus

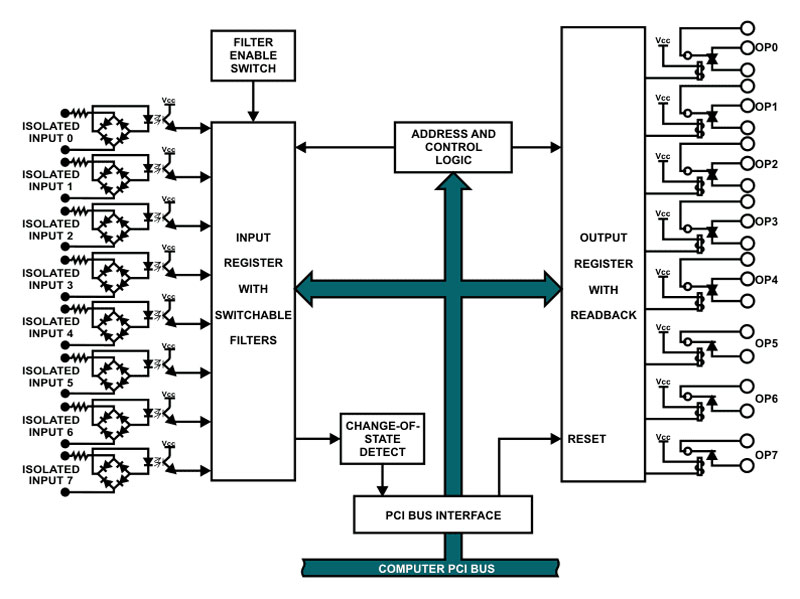

● Number of inputs: 8.
● Type: Non-polarized, optically isolated from each other and from the computer. (not TTL/CMOS compatible)
● Voltage Range: 5 to 24V DC or AC (50 to 1000 Hz)
● Isolation: 500V*(see manual) channel to channel and channel to ground
● Input Resistance: 470 ohms in series with two diodes and an LED
● Response Time: 10 mSec w/filter, 20 uSec w/o filter
● Number of outputs: 8
● Contact Rating: 2A carry current, bifurcated, gold clad, silver palladium
● Contact Arrangement:
- Channels 0-4 are SPDT Form C
- Channels 5-7 are SPST Form A.
● Contact Rating: Initial 100 milliohms maximum
● Contact Life: mech’l: 5 million operations minimum; elect’l: 5 million operations minimum at full load
● Operating Time: 2 milliseconds maximum
● Release Time: 1 milliseconds maximum
● Regulatory Approvals: UL and CSA
When enabled by software, interrupts are generated when digital inputs change state.
+5VDC @ 0.675 A (all relays ON) for PCI-IIRO-8
● Ambient Temperature:Operating 0 to +55°C,Optional Industrial Version Operating: -25 to +55°C
● Storage: -40 to +85°C
● Humidity: 0% to 95% RH, without condensation
● Weight: Approx. 8 oz. (227 grams)
● Size: 6.15″ (156 mm) long.
● This product is designed to be in full compliance with CE requirements.
