● Universal PCI, PCI-X, 3.3V and 5V compatible (Call for PCI-Express availability)
● Eight optically isolated, non-polarized digital inputs
● Eight electro-mechanical relay outputs
● Opto-isolated channel to channel and channel to ground
● Can detect input state change and assert interrupt
● Automatically detected under Windows
● RoHS Available. Please contact us for ordering information
● Support for Wind River VxWorks (call for ordering information)
● Automatic Test Systems.
● Security Systems, Energy Management.
● Robotics.
● Relay Monitoring and Control.
● Parallel Data Transfer to PC.
● Sensing switch closures or TTL, DTL, CMOS Logic.
● Driving Indicator Lights or Recorders.

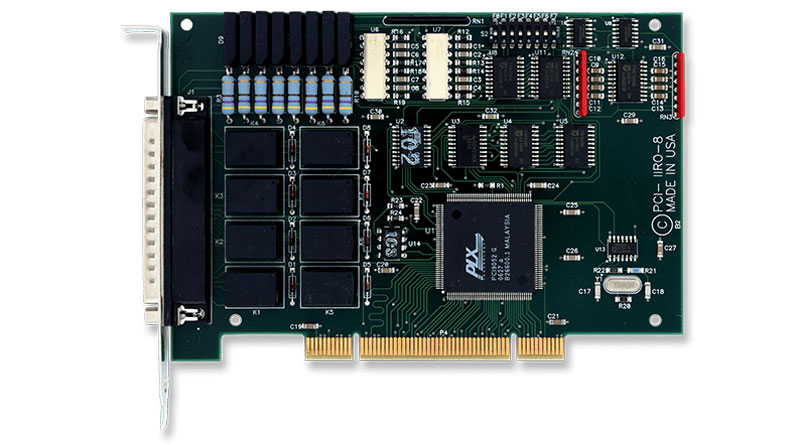

The PCI-IIRO-8, I/O is accessed via a male 37 pin DB connector on the mounting bracket of the card. See the ORDERING INFO tab for options and accessories.
Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.
