● High-speed USB 2.0 device
● Up to 125K conversions per DAC per second
● Streaming waveform data at over 400,000 DAC outputs per second total
● 128K Sample buffer on-board, or Infinitely long streaming waveforms!
● Buffered waveforms at up to 1 million DAC conversions per second total
● ILDA compatible

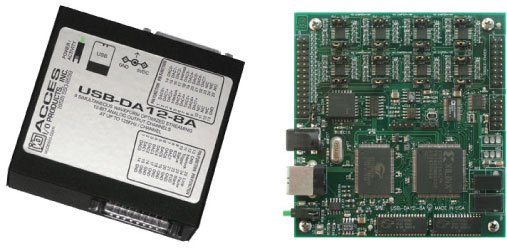

● Small, portable 8-channel, 12-bit, digital to analog outputs
● Double-buffered allowing simultaneous update of all DACs
● Analog output ranges of 0-2.5V, 0-5V, 0-10V, ±2.5V, ±5V, ±10V
● Single-ended and differential outputs on separate connectors
● PC/104 module size and mounting compatibility
● Rugged small-sized (4″ x 4″ x 1.25″) steel enclosure
● Type B USB connector features industrial strength and high-retention design
● Factory Options:
- Resistors in series with differential connector for impedance matching
- DIN rail mounting provision
- Economy ‘E’ version available without screw terminal board
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- RoHS Available. Please contact us for ordering information
- Support for Wind River VxWorks (call for ordering information)r
● Portable
● Laptop
● Education
● Laboratory
● Industrial Automation
● Embedded OEM
